Electromagnet Flush Mount 180KG 350LBS Holding Force Embed Electric Magnetic Door Lock Waterproof 12V DC Fail Safe for Door Access System
Product details
| Management number | 247012481 | Release Date | 2026/08/16 | List Price | US$12.00 | Model Number | 247012481 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

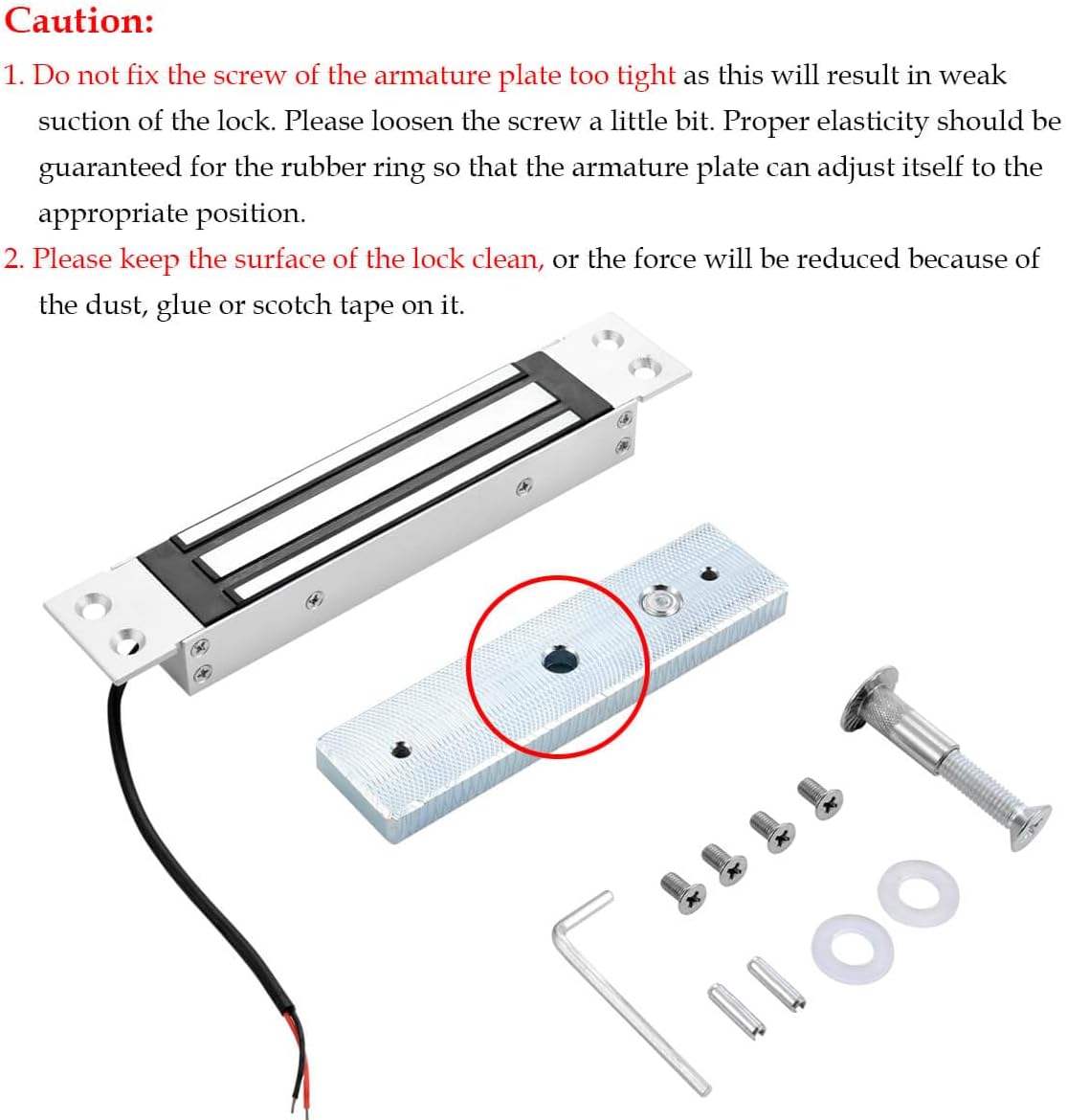

Electromagnet Flush Mount 180KG 350LBS Holding Force Embed electric magnetic door lock Waterproof 12V DC Fail Safe for door access system This electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks. By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut. The door will be closed when power is on; when power off, the door will open. Embedded Installation: Flush Mount. Please check before purchase to see if your door fits to install this magnetic lock. It is suitable for Wooden Door, Metal Door, Fireproof Door, etc. This surface of this Electromagnet Lock is waterproof, so it can be installed outside. Specification: Electromagnetic plate Material: Aluminum Alloy + Metal Plate Armature Plate Material: Zinc Cover Finish: Anodized aluminum Color: Silver Holding Force: 180kg/350lbs Input Voltage: DC 12V Operating Temp: -10 ~ +55C (14-131F) Operation Current: 300mA Size: 7.52L x 1.38W x 0.87H (inch)/ 191L x 35W x 22H (mm) Armature plate: 5.12L x 1.30W x 0.43H (inch)/ 130L x 30W x 11H (mm) Package Weight: Approx. 2.2lb (1KG) Package list: 1 * Electromagnetic Lock 1 * Armature Plate 1 * Screws Pack 1 * User Manual (English)
- Materials: Stainless steel, Anti-residual magnesium designed. This magnetic door lock provides a strong sense of security with its outstanding holding force 180KG (350LBS) and significant features.
- Size: The lock size is 7.52 x 1.38 x 0.87 inch (191x35x22mm); Armature plate: 5.12 x1.30 x 0.43 inch (130x33x11mm). Holding Force: 180kg (350lbs).
- Mode: NC Mode, Locked whilst power supply is operating, unlocked when power off; Fail-Safe Mode. Voltage: 12V DC.
- Security protection: This electric magnetic lock has safety function. It is built in voltage spike suppressor. This surface of this Electromagnet Lock is waterproof, so it can be installed outside.
- Embedded Installation: Flush Mount. Please check before purchase to see if your door fits to install this magnetic lock. It is suitable for Wooden Door, Metal Door, Fireproof Door, etc.
| UPC | 769894490402 |
|---|---|
| ASIN | B0BLC8CHMV |
| Color | 180KG/350LBS |
| Lock Type | Magnetic Lock |
| Brand Name | YUHANUS |
| Model Name | MagLockAnZ-350LBS |
| Style Name | Modern |
| Unit Count | 1 Count |
| Manufacturer | YUHANUS |
| Model Number | 769894490402 |
| Material Type | Stainless Steel |
| Control Method | Touch |
| Item Dimensions | 8 x 1 x 1 inches |
| Number of Items | 2 |
| Number of Packs | 1 |
| Number of Pieces | 6 |
| Additional Features | Waterproof |
| Manufacturer Part Number | 769894490402 |
| Manufacturer Warranty Description | 1 Year Warranty |
